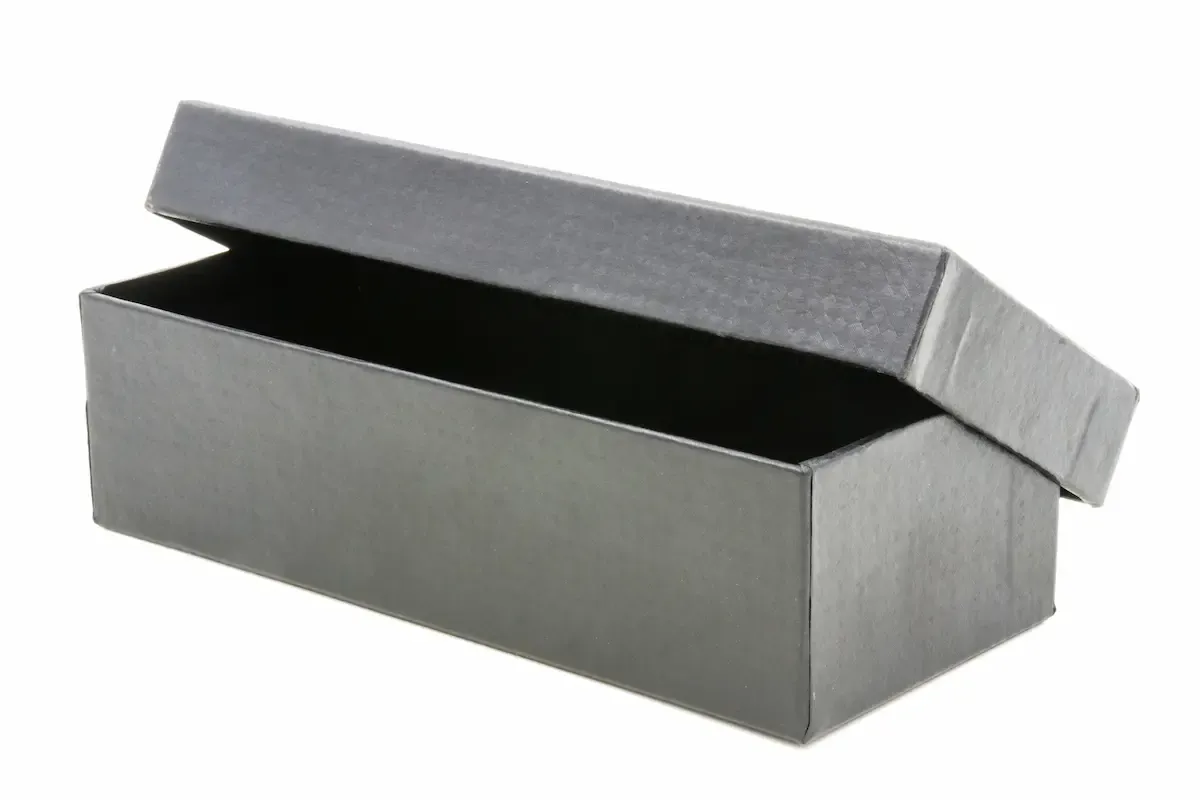

Sheet metal deep drawing meaning and technical applications
The meaning of sheet metal deep-drawing concerns the transformation of a flat sheet into a hollow geometry by the combined action of punch, die, and premill, which drive the deformation to cylindrical, conical, or deeply deep-drawn shapes without breaks or wrinkles.
Deep-drawn sheet metal arises from a controlled sequence of material creep and stretching that, unlike bending or calendering, not only alters the curvature of the sheet but also alters its depth, generating closed volumes used in technical enclosures, casings, tanks, structural shells, and cylindrical bodies destined for subsequent stages of sheet metal welding or sheet metal fabrication. This process requires balance between radial creep, pressure distribution, and material control along the die, so that plastic deformation occurs uniformly without excessively thinning the most stressed areas.
Deep drawing represents one of the most complex techniques in metalworking because the sheet metal, subjected to high force, must flow downward following the profile of the die without generating instability. The punch, pushing with gradual pressure, brings the sheet metal beyond its elastic limit, transforming it into a hollow body while the die press controls the material feed by preventing the formation of wrinkles.
The achievable depth varies depending on the thickness, elongation at break of the alloy and the lubrication used; incorrect parameters quickly lead to defects such as material tearing or excessive wall thinning. For this reason, deep drawing is closely linked to die design and set geometric values, including punch radius, die profile and punch-matrix clearance, which are decisive elements in achieving repeatable geometries with consistent quality.
Technological function of deep-drawing and the role of deep-drawn sheet metal in production processes
Deep drawing finds use in all cases where sheet metal must take on complex three-dimensional shapes without resorting to welding or multiple assemblies that would increase time, cost and tolerances. The main advantage lies in the ability to obtain continuous and structurally stable volumes from a single sheet, an essential feature in the production of tanks, containers, protective casings and enclosures for industrial use.
Compared to sheet metal bending, which produces open shapes, deep drawing makes it possible to create closed or deep pieces by obtaining uniform walls and smooth curves without joints.
Compared with sheet metal calendering, which generates continuous cylindrical curvatures, deep drawing handles radial displacements of the material, allowing for deep volumes and pools with greater structural stability.
The dynamics of the process make deep drawing particularly effective when parts require rigidity, mechanical strength and a high level of precision. The dimensional stability provided by progressive forming avoids successive welds and reduces geometric variations that complicate assembly. In addition, the possibility of combining deep drawing with processes such as
Materials, thicknesses and technical parameters governing metal drawing
The behavior of sheet metal during deep drawing changes dramatically depending on the material. Mild steels, due to their ductility, are the most common choice, as they offer high elongation without generating premature cracks. Stainless steels require higher pressures and more controlled lubrication, while aluminum alloys provide excellent results when light but strong parts are needed, while being more sensitive to tearing.
Thickness influences the force required and the depth limit that can be reached: as the depth of drawing increases, the risk of thinning increases, so it is essential to maintain a balanced ratio between blank diameter and final diameter.
Fundamental technical parameters are used in practice: the drawing ratio (D/d), which indicates the ability of the sheet metal to go from an initial diameter to a smaller one; the punch-matrix clearance, which is crucial to allow sliding without loss of containment; the drawing force, which must be consistent with thickness and material; and lubrication, which reduces friction and slows the onset of cracks. These parameters must be calibrated in complementary ways because an incorrect clearance value or excessive pressure generates immediate defects, while insufficient lubrication increases friction and the risk of cracks.
| Material | Typical thickness | Recommended D/d ratio | Technical Notes |
|---|---|---|---|
| Carbon steel | 0.6-2 mm | 1.8-2.2 | Excellent ductility, good wall uniformity |
| Stainless steel | 0.5-1.5 mm | 1.6-1.9 | High springback, requires careful lubrication |
| Aluminum 5000 series | 0.8-2 mm | 2.2-2.5 | Good creep, risk of tearing in thinning |
Machines, molds and process setup
Drawing quality depends largely on the combination of press, die and operating parameters. Hydraulic presses provide finer force control, which is useful when the material requires gradual pressure changes during the stroke, while mechanical presses provide higher speeds in repetitive cycles. The die consists of three basic elements: the
The operating sequence may include pre-drawing, preforming, and multiple stages of deep drawing when the required depth exceeds the capabilities of the single pass. In more complex cases, progressive dies are used that guide the material through intermediate shapes until the final part is obtained. The definition of
Defects in deep-drawn sheet metal and necessary controls
The most frequent drawing defects result from a combination of incorrect parameters and suboptimal material behavior. Wrinkles appear when premill pressure is insufficient and the material flows too fast toward the center, while tearing occurs when the tensile stress exceeds the sheet’s yield strength. Uneven wall thinning indicates an improper balance between sliding and stretching of the material, with areas experiencing excessive deformation. Differential creep between punch and sheet metal can also generate surface striations and friction lines, especially in materials with a high coefficient of friction.
- Wrinkles due to insufficient premill pressure.
- Tears caused by overloading in the tensile zones.
- Irregular thinning in excessive stretching.
- Drag marks from insufficient lubrication or unclean rollers/molds.
Inclusion of deep drawing in the production process
Deep drawing is naturally integrated within sheet metal production cycles, finding its place after blank cutting and before trimming, edging or welding operations. Proper management of initial development,
Final considerations on the quality and efficiency of deep-drawn sheet metal
Properly deep drawn sheet metal results in components that are structurally stable, geometrically consistent, and ready for integration into assembly and welding cycles. The continuity of shape, absence of joints, and cleanliness of the part help improve the quality and durability of the final component. The ability to control the drawing ratio, manage lubrication and monitor applied pressures makes this process one of the most versatile tools in metalworking, especially when deep, high-precision shapes are needed. Integrated with techniques such as punching, bending and finishing, deep drawing becomes part of a stable and repeatable production flow, capable of ensuring continuity of quality even in the most complex cycles.
